Beschrijving

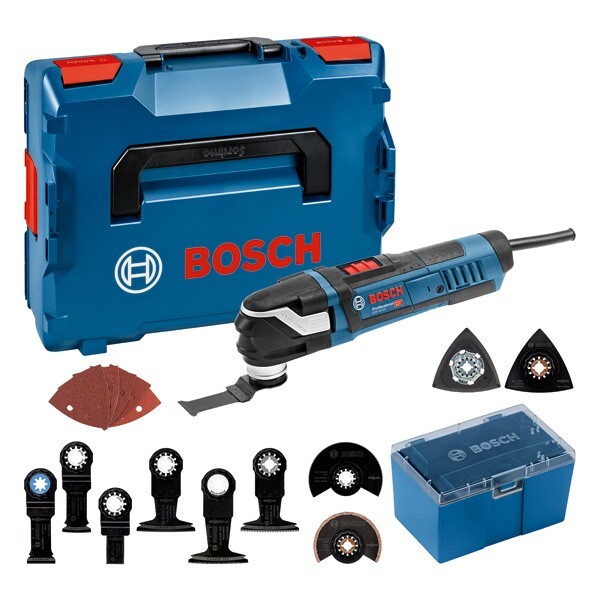

Multi-Cutter GOP 40-30, The GOP 40-30 Professional corded multi-tool is the strong all-round performer in the Bosch StarlockPlus category. It features a strong 400 W motor combined with a superior Starlock interface with an optimised 3-dimensional tight-fitting connection between the machine and accessory for the highest possible power transmission. The multi-tool also has a small ergonomic handle grip providing comfortable handling and better tool control. Furthermore, its Snap-in function enables fast and easy tool accessory changes. This tool is intended for fitting door frames to new flooring, and window removal as well as pipe and nail cutting. It can be used in wood, plastic, and metal. It is compatible with the Starlock and StarlockPlus systems. The GOP 40-30 Professional also includes features such as Constant Speed, LED light, soft grip, and Speed Selection. 1 x Starlock BIM plunge cut saw blade AII 65 APB, Curved-Tec, Wood + Metal (2 608 661 781), 1 x Starlock BIM plunge cut saw blade AII 65 BSPB, Curved-Tec, Hard Wood (2 608 662 017), 1 x Starlock BIM plunge cut saw blade AIZ 20 AB, Wood + Metal (2 608 661 640), 1 x Starlock BIM plunge cut saw blade AIZ 32 APB, Wood + Metal, Curved-Tec (2 608 661 644), 1 x Starlock Carbide-RIFF sanding plate AVZ 78 RT2, Grout + Abrasive (2 608 661 648), 1 x Starlock Carbide-RIFF segment saw blade ACZ 85 RT3, Grout + Abrasive (2 608 661 642), 1 x StarlockPlus BIM plunge cut saw blade PAII 65 APB, Curved-Tec, Wood + Metal (2 608 662 564), 1 x StarlockPlus BIM plunge cut saw blade PAIZ 32 APB, Curved-Tec, Wood + Metal (2 608 662 558), 1 x StarlockPlus Carbide plunge cut saw blade PAIZ 32 AT, Metal (2 608 662 555), 5 x sanding sheets, K 2x80, 2x120, 1x240 (2 608 621 104), 1 x Starlock delta sanding plate AVZ 93 G (2 608 000 493), 1 x Starlock BIM segment saw blade ACZ 100 BB, Wood + Metal (2 608 661 633), L-BOXX 136 (1 600 A01 2G0)
Specificaties
Compatibel met Starlock-systeem
Starlock Plus
Gewicht
1.5 kg
Meetonzekerheid k (slijpen)
3.0 m/s²
Meetonzekerheid k (zagen met invalzaagblad)
11.0 m/s²
Meetonzekerheid k (zagen met segmentzaagblad)
6.5 m/s²
Meetonzekerheid k [schrapen]
6.0 m/s²
Nominaal ingangsvermogen
400 W
Onbelast trillingsfrequentie
8000 - 20000 min-1
Onbelast trillingsfrequentie, tot
20000 min-1
Onbelast trillingsfrequentie, van
8000 min-1
Oscillatiehoek links en rechts
1.5 °
Trillingsemissie ah [schrapen]
1.5 m/s²
Trillingsemissie ah [slijpen]
1.5 m/s²
Trillingsemissie ah [zagen met invalzaagblad]
1.5 m/s²
Trillingsemissie ah [zagen met segmentzaagblad]
1.5 m/s²

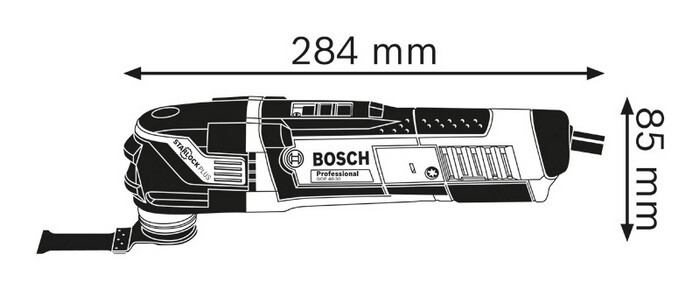

Verpackungsabmessungen (Breite x Länge x Höhe)
361 x 443 x 154 mm
