Digitale hellingmeter
GIM 60 L Bosch 0.601.076.900Art.-Nr.: 1269791Leveranciersnummer: 0601076900EAN: 3165140803243
Aantal:
1 STKPakketgeschikt
Beschrijving

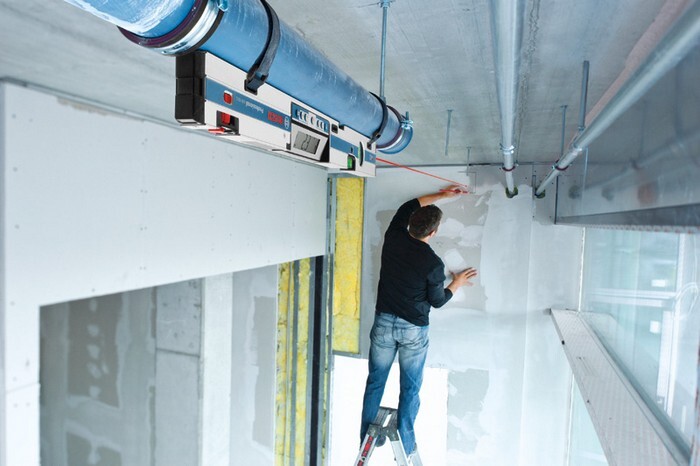

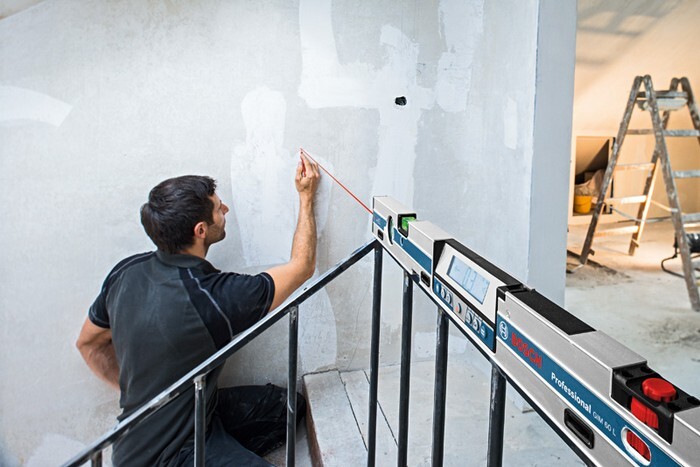

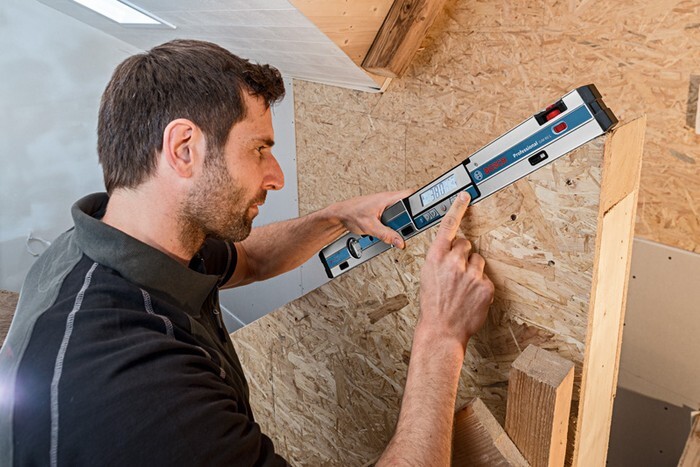

Digital Inclinometer GIM 60 L, Laser-accurate incline transfer over longer distances, Integrated point laser for incline measurement up to a distance of 30 m, Strong magnets and two straps for securely fastening the instrument to workpieces, Incline mechanism for fine adjustment on uneven surfaces, Protective Bag, 4 x 1.5 V LR6 battery (AA)
Specificaties
Gewicht ca.
0.91 kg
Laserbereik
30 m
Laserklasse
2
Lengte (batterij)
60 cm
Maateenheden
°, %, mm/m
Meetbereik
0 - 360° (4 x 90°)
Meetnauwkeurigheid elektronica 0°/90°
± 0.05°
Meetnauwkeurigheid elektronica bij 1 - 89°
± 0.1°
Nivelleernauwkeurigheid laser
± 0.5 mm/m
Statiefmontage
1/4"
Type laser
635 nm, < 1 mW
Werkbereik (laser)
30 m
