Ganter

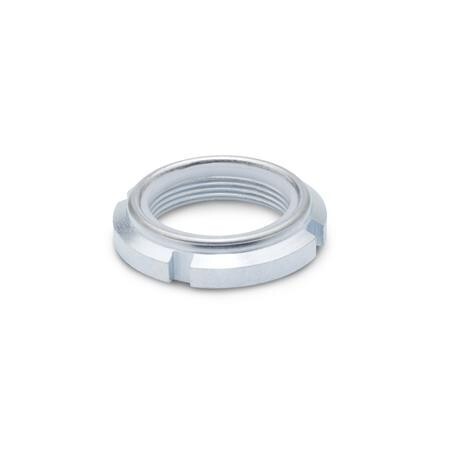

Sleufmoer, zelfborgend

GN 1804.1-M35X1,5 met polyamide inzetstuk
ST - Staal
Art.-Nr.: 1178786Leveranciersnummer: 1804.1-M35X1,5EAN: 4045525770928

Aantal: ​​ 1 STKPakketgeschikt
Artikel in 25 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Slotted locknuts GN 1804.1 are self-locking owing to their polyamide insert. They can therefore also be used as a setting nut and may be used more than once. The thread series largely corresponds to roller bearing slotted locknuts according to DIN 981. The additionally available dimensions listed above cover typical thread sizes used in machine and device construction.
Specificaties
Gewicht
0.058 kg
Haaksleutel
1810-A45-50
Materiaal
ST - Staal
RoHS
Ja
Schroefdraad d1
M 35 x 1,5
b
5
d2
50
d3
44
h
11
m
7
