Beschrijving

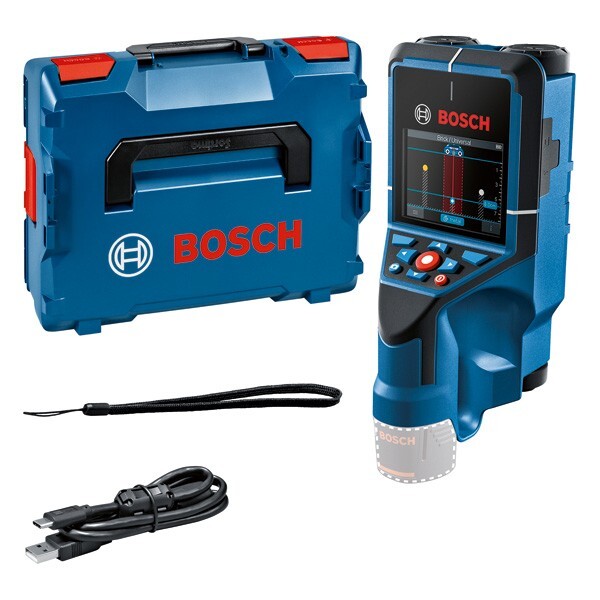

Detector Wallscanner D-tect 200 C, The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation. The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage. The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth. L-BOXX 136 (1 600 A01 2G0), USB-C™ Cable, Hand strap
Specificaties
Accuspanning
12 V
Bijwerkbaar
ja
Bosch radartechnologie
ja
Detectiediepte droog beton, max.
200 mm
Detectiediepte houten onderconstructies, max.
38 mm
Detectiediepte jong beton, max.
60 mm
Detectiediepte overige muurtypen, max.
80 mm
Documentatie via
USB-C
Erfassbare Objekte
wasserführende Kunststoffrohre
Gewicht, ca.
0.7 kg
Materiaal identificatie
Stroomvoerende kabel
Max. zoekdiepte
200 mm
Nauwkeurigheid
± 5 mm* (* plus toepassingsafhankelijke afwijking)
Stof- en spuitwaterbescherming
IP 5X
Stroomvoorziening
4 x 1,5 V LR6 (AA)
Type wand
Paneelverwarming
Zichten
Spotweergave
