Beschrijving

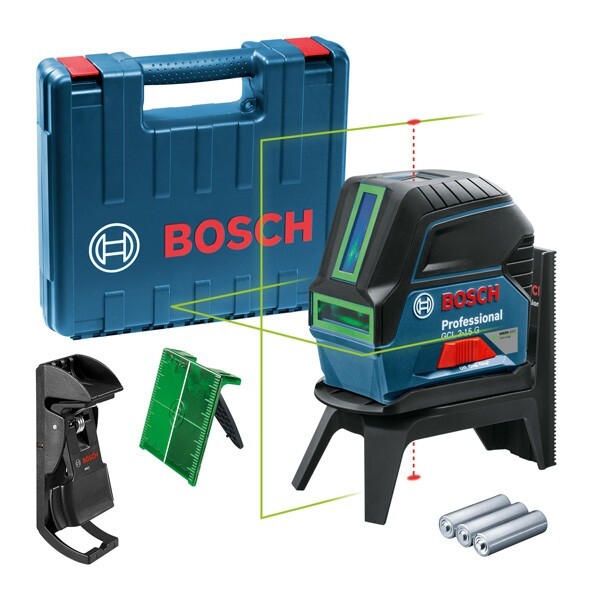

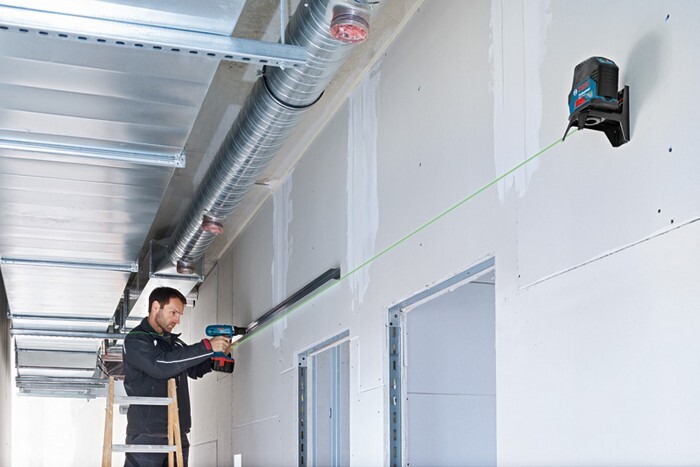

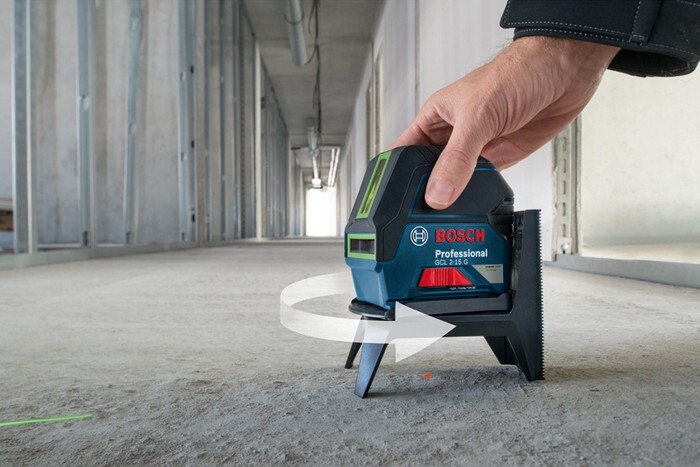

Combi Laser GCL 2-15 G, Up to four times better visibility with green laser lines and perfectly versatile – this is Bosch´s combi laser GCL 2-15 G Professional. The two laser lines allow for precise vertical and horizontal alignment, while red plumb points simplify transfer applications. Easily align laser lines around the plumb points with the versatile rotating mount RM 1 Professional. The GCL 2-15 G Professional is suitable for various jobs such as suspending drop-ceilings, installing drainage pipes and laying floors. It also offers point transfers for light mountings. The GCL 2-15 G Professional has a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust with IP54 dust and splash water protection. When the tool is switched off, the pendulum automatically locks for safe transportation and convenient storage. Carrying case, Rotating mount RM 1 Professional (0 601 092 600), Ceiling clamp, Laser target plate, 3 x 1.5 V LR6 battery (AA)
Specificaties
Bedrijfstemperatuur
-10 - 50 °C
Bedrijfstijd, max.
8 u in cross-line werking
Gewicht, ca.
0.49 kg
Kleur laserlijn
groen
Laserdiode
Punt: 630 - 650, < 1 mW
Laserklasse
2
Nivelleernauwkeurigheid
± 0,3 mm/m* (* plus toepassingsafhankelijke afwijking)
Nivelleertijd
4 s
Opslagtemperatuur
-20 - 70 °C
Projectie
2 regels / 2 punten
Soldeerpunt nauwkeurigheid
± 0,7 mm/m* (* plus toepassingsafhankelijke afwijking)
Statiefschroefdraad
1/4", 5/8"
Stof- en spuitwaterbescherming
IP 54
Stroomvoorziening
3 x 1,5 V LR6 (AA)
Werkbereik
tot 15 m
Werkbereik laserstip, max.
10 m (onder)
Werkbereik, teken
tot
Werkbereik, waarde
15 m
Zelfnivelleringsbereik
± 4°
