Beschrijving

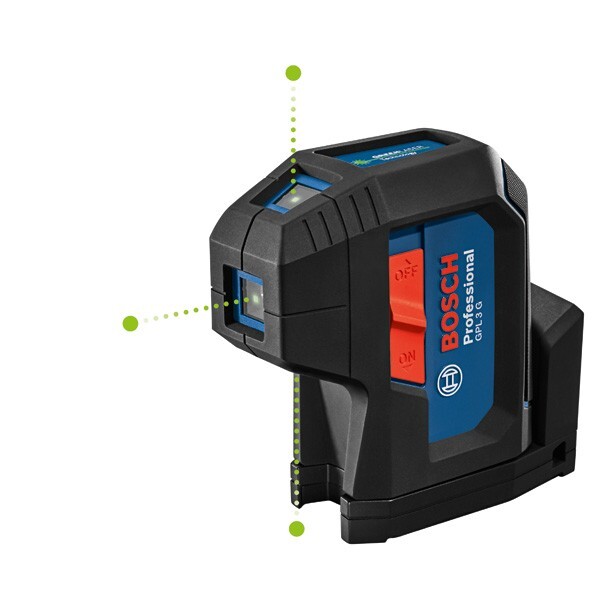

Point Laser GPL 3 G, The 3-point laser GPL 3 G Professional is resilient and small in design, making it ideal for drywalling. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 3 G Professional also resists tough jobsite conditions. This 3-point laser is equipped with an integrated rotation mount that features strong magnets for fast and secure tool mounting while also enabling convenient transportation. The GPL 3 G Professional is the ideal helper for transferring points from floor to ceiling, e.g., when installing interior lighting. It is perfectly shaped for stud alignment for drywall framework. This 3-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked. Pouch, 2 x 1.5 V LR6 battery (AA)
Specificaties
Bedrijfstemperatuur
-10 - 45 °C
Bedrijfstijd, max.
8 h
Gewicht, ca.
0.35 kg
Laserdiode
< 1 mW, 500 - 540 nm
Laserklasse
2
Nivelleernauwkeurigheid
± 0,35 mm/m* (behalve onderste laserpunt), ± 0,7 mm/m* (onderste laserpunt) (*plus toepassingsafhankelijke afwijking)
Nivelleertijd
4 s
Opslagtemperatuur
-20 - 70 °C
Projectie
3 punten
Statiefschroefdraad
1/4"
Stof- en spuitwaterbescherming
IP 65
Stroomvoorziening
2 x 1,5 V LR6 (AA)
Werkbereik
tot 30 m
Werkbereik, teken
tot
Werkbereik, waarde
30 m
Zelfnivelleringsbereik
± 4°
