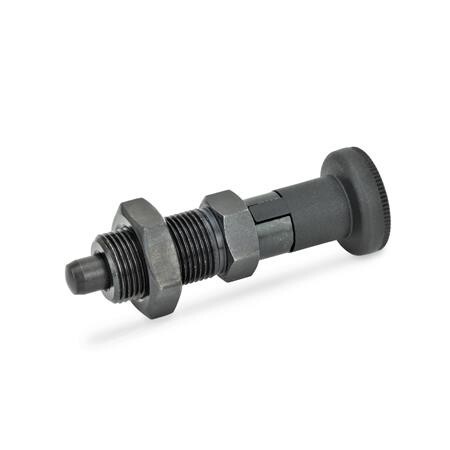

Grendel met grendelslot
GN 617.1-6-AK met borgmoerST - Staal
Art.-Nr.: 1076334Leveranciersnummer: 617.1-6-AKEAN: 4045525316751
VPE (VE): 10 STKAantal:
1 STKPakketgeschikt
Artikel in 8 varianten beschikbaar:
Beschrijving
Indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
6
Eindsterkte
24
Gewicht
0.043 kg
L1
61
L2
6
Materiaal
ST - Staal
RoHS
Ja
SW
14
Vorm
AK - met contramoer
d2
M 12 x 1,5
d3
25
e
16.2
l3
20
l4
6
l5 Min.
17
