Beschrijving

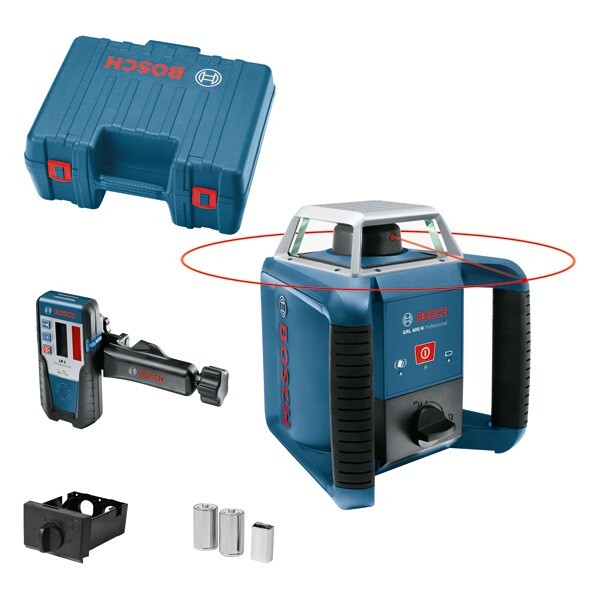

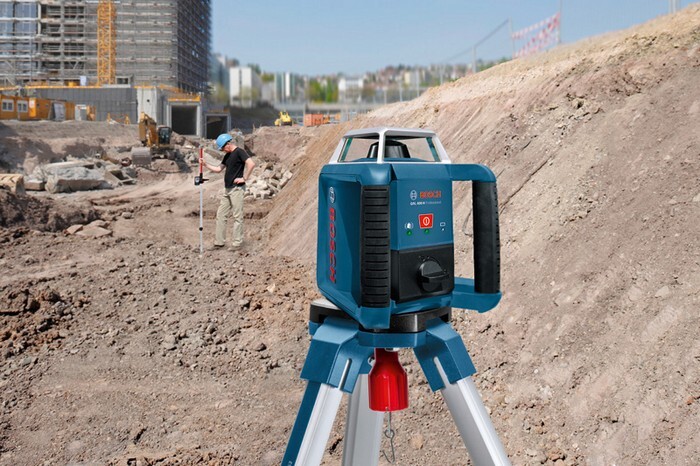

Rotation Laser GRL 400 H, Easy to use and ready to go – the intuitive, single-button GRL 400 H rotary laser is always prepared for use at a moment´s notice when performing outdoor-levelling applications. Its one-button keypad, Electronic Self Levelling functionality, and convenient battery tray enable straightforward work with an easy setup and simple battery replacement – without even moving the tool. With an accuracy of ± 2.4 mm at 30m and an ADS shock warning system that indicates if the tool's position has changed, the GRL 400 H prevents levelling errors and delivers consistently accurate results. From determining cut and fill values for excavation and footings, to levelling concrete forms and landscaping, this tool does an excellent job. This rotary laser is prepared to withstand the harsh conditions of any outdoor jobsite thanks to its water and dust protection IP56. Carrying case (spare part number 1 608 M00 05F), Laser Receiver LR 1 Professional (0 601 015 400), Non-rechargeable battery compartment (1 609 203 M02), 2 x 1.5 V LR20 battery (D), 1 x 9 V block battery (6LR61)
Specificaties
Bedrijfstemperatuur
-10 - 50 °C
Compatibele laserontvanger
LR 1
Gewicht, ca.
2 kg
Kleur laserlijn
rood
Laserdiode
635 nm, < 1 mW
Laserklasse
2
Nivelleernauwkeurigheid
± 2,4 mm op 30 m* (* plus toepassingsafhankelijke afwijking)
Nivelleertijd
15 s
Opslagtemperatuur
-20 - 70 °C
Rotatiesnelheid
600 min-1
Statiefschroefdraad
5/8"-11
Stof- en spuitwaterbescherming
IP 56
Stroomvoorziening
2 x 1,5 V LR20 (D)
Werkbereik met ontvanger
tot 400 m (diameter)
Werkbereik met ontvanger, teken
tot
Werkbereik met ontvanger, waarde
400 m
Werkbereik zonder ontvanger
tot 20 m (diameter)
Werkbereik zonder ontvanger, teken
tot
Werkbereik zonder ontvanger, waarde
20 m
Zelfnivelleringsbereik
± 8 % (± 5°)
