Artikel in 4 varianten beschikbaar:
Beschrijving

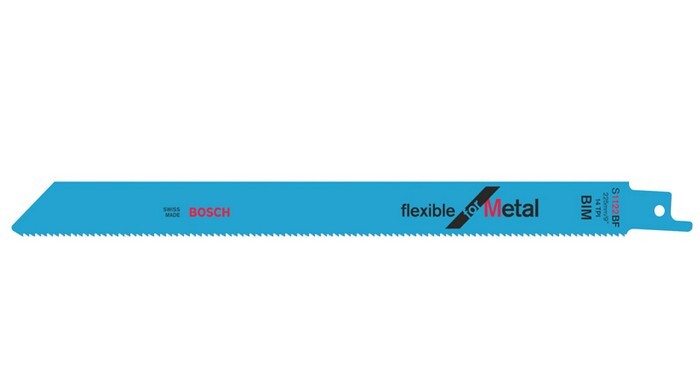

The S 1122 BF Flexible for Metal Reciprocating Saw Blade is optimised for flush cutting in metal. Its 225 mm length and standard-gauge material thickness of 0.9 mm enable excellent flush cuts. Moreover, it features a tooth pitch of 1.8 mm, allowing for working at high speeds. Made from BIM (bi-metal), the blade is engineered for cutting regular-strength steel materials, while its tooth pitch of 1.8 mm is ideal for cutting pipes and profiles with a wall thickness of 3 mm to 8 mm. The reciprocating saw blade’s standard length of 225 mm provides a cutting capacity of up to 175 mm.
Specificaties
Abkürzung für Blattmaterial
BIM
Blattmaterial
BI-METAL
Bleche, dick
3-8 mm
Breedte
19 mm
Dicke
0.9 mm
Dikte
0,9 mm
Empfohlene max. Materialstärke
8 mm
Empfohlene min. Materialstärke
2.5 mm
Körpermaterial
HCS
Materiaal
BIM
Max. Schnittleistung
175 mm
Profile, Rohre: geschlossen
<175 mm
Profile, Rohre: massiv
<175 mm
Profile, Rohre: offen
<175 mm
St. per kaart
5
Tandafstand TPI
14
Tandsteek
1,8 mm
Totale lengte
225 mm
Type
S 1122 BF
Versie
ingesteld, gefreesd
Zahnausführung
geschränkt, gefräst
