Scharnier
GN 235-NI-55-55-HB-GS roestvast staalNI - Roestvrij staal
Art.-Nr.: 1344404Leveranciersnummer: 235-NI-55-55-HB-GSEAN: 4045525592377
Aantal:
1 STKPakketgeschikt
Artikel in 18 varianten beschikbaar:
Beschrijving

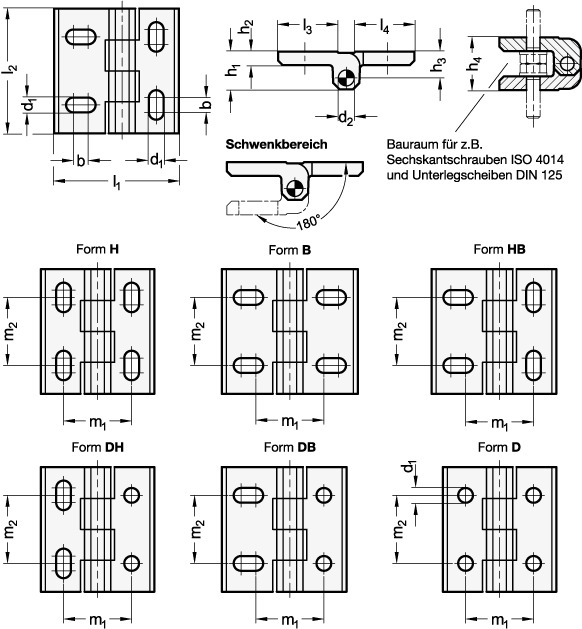

Stainless steel hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head. Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision. The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.
Specificaties
Breedte l2
55
DB, HB, B
26
Gewicht
0.160 kg
Hoogte l1 (Vorm DB. HB)
55
Materiaal
NI - Roestvrij staal
Oppervlakte
GS - mat gestraald
RoHS
Ja
Vorm
HB - verstelbaar in hoogte en breedte
b
6.5
d1
6.5
d2
6
h1
16.6
h2
6
h3
11.6
h4
23.2
m1
30
m2
30
