Artikel in 4 varianten beschikbaar:
Beschrijving

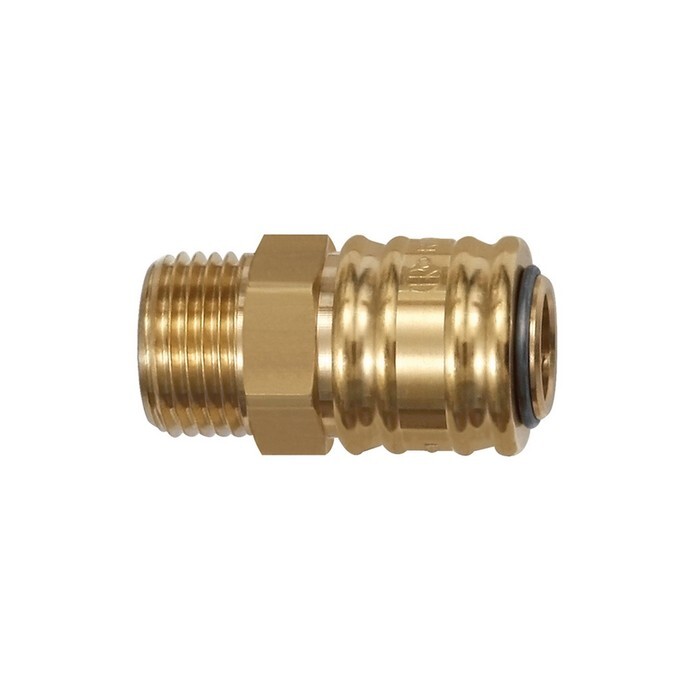

Quick-connect coupling I. D. 7. 2, bright brass, G 1/8 ET, Operating pressure 0 - 35 bar, Med. /ambient temp. -20 °C to 100 °CUniversal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications! The closed sleeve protects the coupling from dirt. To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling. These quick disconnect couplings are not suitable for direct attachment to pulsating tools. We recommend using our vibration dampers, according to ISO 6150 § 7. 1. Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
Specificaties
Aansluiting
G 1/8 AG
Afdichtingsmateriaal
NBR
Bedrijfsdruk
0 - 35 bar, max. statische werkdruk (zonder pulsatie)
Behuizing
Helder messing
Debiet
1000 l/min (lucht)
Lengte (batterij)
38 mm
Medium temperatuur max.
100 °C
Medium temperatuur min.
-20 °C
Mouwen
Helder messing
NW
7,2
Omgevingstemperatuur max.
100 °C
Omgevingstemperatuur min.
-20 °C
Riegler artikelnummer
107207
SW
22 mm
Spuitring
Roestvrij staal
Veer
Roestvrij staal
Ventielhuis
Helder messing
Vergrendelingspennen
Roestvrij staal
