Beschrijving

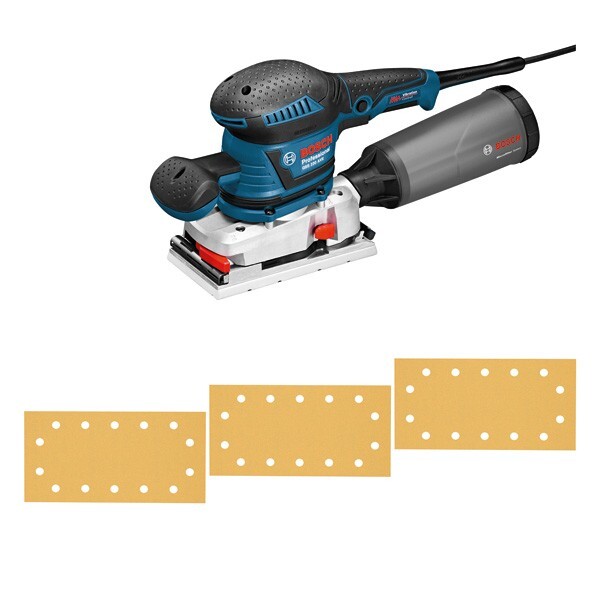

Orbital Sander GSS 230 AVE, The GSS 230 AVE is Bosch's Professional corded orbital sander for high-end surface quality results in the 230-mm category. Highest-quality surface results are enabled by its housing with a decoupled sanding unit for consistent contact pressure. The built-in unique vibration damping technology produces very low vibrations, allowing for continuous work. Sanding paper can be easily and perfectly fitted due to the sander´s hook-and-loop pad with a tension system. It is intended for sanding, in-between sanding of surfaces and frames, as well as for surface finishing. It is applicable on wood, veneer, lacquer, filler, as well as on mineral and acrylic surfaces. It is compatible with the Bosch Click & Clean System. The GSS 230 AVE Professional also includes a dust box with a built-in Bosch Micro Filter System, as well as speed selection. Cardboard box, 1 x sanding sheet C470, Best for Wood + Paint, 80 (available separately as set of 10: 2 608 605 255), 1 x sanding sheet C470, Best for Wood + Paint, 120 (available separately as set of 10: 2 608 605 256), 1 x sanding sheet C470, Best for Wood + Paint, 180 (available separately as set of 10: 2 608 605 257), Auxiliary handle (2 602 026 175)
Specificaties
Gewicht
2.4 kg
Leerlaufdrehzahl, bis zu
11000 min-1
Leerlaufdrehzahl, von
8000 min-1
Meetonzekerheid k (plaatmaterial)
1.5 m/s²
Nominaal ingangsvermogen
300 W
Onbelast toerental
8000 - 11000 min-1
Schuurblad met klittenband, breedte
93 mm
Schuurblad met klittenband, lengte
185 mm
Schuurblad voor opspannen, breedte
93 mm
Schuurpapier voor klemming, lengte
230 mm
Schuurplateau, breedte
92 mm
Schuurplateau, lengte
182 mm
Spanning, elektrisch
230 V
Trillingsemissie ah [plaatmateriaalslijpen]
2.5 m/s²
Trillingskring diameter
2.4 mm
Trillingsniveau bij onbelast
16000 - 22000 min-1
Trillingssnelheid bij onbelast, tot
22000 min-1
Trilsnelheid bij onbelast vanaf
16000 min-1
Verpackungsabmessungen (Breite x Länge x Höhe)
224 x 450 x 148 mm
Werkzeugabmessungen (Länge)
419 mm
