Beschrijving

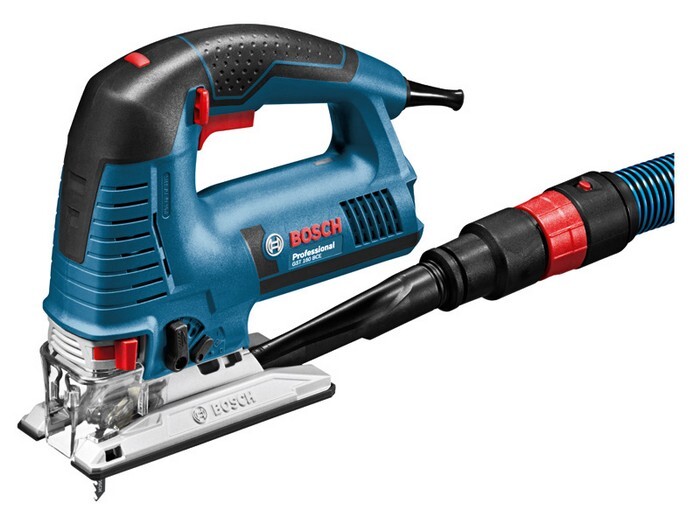

Jigsaw GST 160 BCE, The GST 160 BCE Professional corded jigsaw offers precision for high-end applications. Optimal tool control is ensured by its bow handle with narrow grip and variable speed trigger as well as by its compact, lightweight design. The jigsaw’s patented double roller saw blade guidance reduces bending, delivering excellent cutting precision. Its reliable 800 W motor and constant speed deliver cuts in even the hardest materials. This tool is intended for curved cutting in solid wood, chipboard, and wood composites. It is compatible with the Bosch Click & Clean dust extraction system and other Bosch vacuum cleaners as well as with guide rails via an adapter. The GST 160 BCE Professional also makes bevelled cuts and features a blower, an LED light, orbital action, precision control, speed selection, and tool-free SDS saw blade changes. Dust extraction adapter, L-BOXX 136 (1 600 A01 2G0), Anti-splinter guard (2 601 016 096), 1 x jigsaw blade T 144 DP, Precision for Wood (available separately as set of 3: 2 608 633 A31), 1 x jigsaw blade T 244 D, Speed for Wood (available separately as set of 3: 2 608 630 879), 1 x jigsaw blade T 308 BP, Precision for Wood (available separately as set of 3: 2 608 667 399), 1/1 L-BOXX inlay for tool (1 600 A00 2UN)
Specificaties
Aantal slagen bij onbelast toerental
800 - 3000 min-1
Aantal slagen bij onbelast toerental vanaf
800 min-1
Aantal slagen bij onbelast toerental, tot
3000 min-1
Gewicht
2.3 kg
Leerlaufdrehzahl
3000 min-1
Meetonzekerheid k (zagen van hout)
1.5 m/s²
Meetonzekerheid k (zagen van metaalplaat)
1.5 m/s²
Nominaal ingangsvermogen
800 W
Snijdiepte in ongelegeerd staal
10 mm
Spanning, elektrisch
230 V
Trillingsemissie ah [Zagen van plaatmetaal]
3.5 m/s²
Trillingsemissie ah [zagen van hout]
6.5 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
359 x 447 x 156 mm
Werkzeugabmessungen (Länge)
277 mm
Zaag, slaglengte
26 mm
Zaagdiepte in aluminium
20 mm
Zaagdiepte in hout
160 mm
Zaagdiepte in staal
10 mm
