Beschrijving

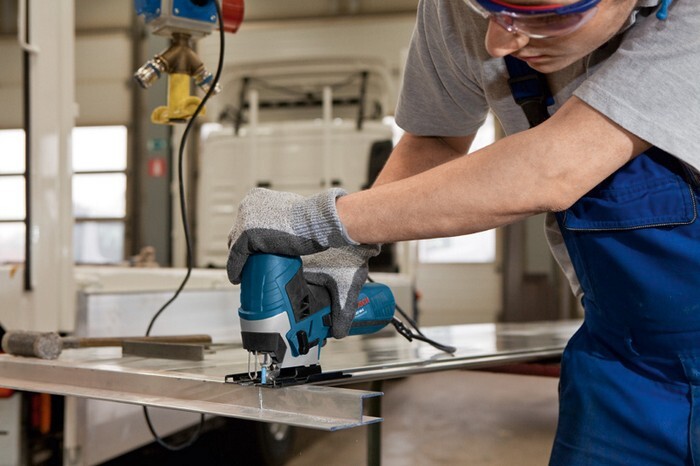

Jigsaw GST 90 E, The GST 90 E Professional corded jigsaw offers reliable entry-level performance. Its barrel grip enables steady day-to-day work even when cutting a workpiece from underneath. The jigsaw’s tool-free Bosch SDS-system makes changing saw blades easy. Additionally, its reliable 650 W motor produces fast work results. This tool is intended for curved cutting in solid wood, chipboards, and wood composites. It is compatible with the Bosch Click & Clean System as well as with other Bosch vacuum cleaners. The GST 90 E Professional can also make beveled cuts and features a blower, orbital action, and speed selection Carrying case, Hex key WAF 5 (spare part number 1 907 950 006), Anti-splinter guard (spare part number 2 601 016 065), Dust extraction set (spare part number 1 619 P07 167), 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)
Specificaties
Aantal slagen bij onbelast toerental
500 - 3100 min-1
Aantal slagen bij onbelast toerental vanaf
500 min-1
Aantal slagen bij onbelast toerental, tot
3100 min-1
Gewicht
2.3 kg
Kabellengte
2.5 m
Meetonzekerheid k (zagen van hout)
1.5 m/s²
Meetonzekerheid k (zagen van metaalplaat)
1.5 m/s²
Nominaal ingangsvermogen
650 W
Snijdiepte in ongelegeerd staal
10 mm
Spanning, elektrisch
230 V
Trillingsemissie ah [Zagen van plaatmetaal]
8.5 m/s²
Trillingsemissie ah [zagen van hout]
8.5 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 447 x 117 mm
Werkzeugabmessungen (Länge)
332 mm
Zaagdiepte in aluminium
20 mm
Zaagdiepte in hout
90 mm
Zaagdiepte in staal
10 mm
