Beschrijving

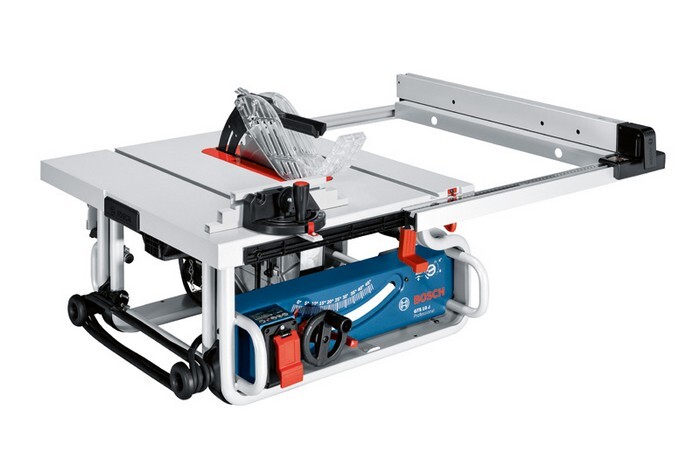

Table Saw GTS 10 J, The GTS 10 J Professional corded table saw is highly compact, delivering portable professional performance to various jobsites. It features a compact design and multiple grip areas for easy and convenient transportation. The saw’s impressive 1,800 W motor delivers its powerful cutting performance for fast work progress. Additionally, a tool-free lowering of its riving knife enables quick adjustments for creating concealed cuts. This tool is intended for cutting board materials to custom sizes, rip cutting, and concealed cuts in wood as well as wood composites, board materials, and laminate. It is compatible with table saw stands as well as the Bosch Click & Clean dust extraction system. The GTS 10 J Professional’s features include double insulation, overload protection, Soft Start, and Spindle Lock. Angle guide (2 610 015 507), Dust extraction adapter (2 610 015 509), Parallel guide (2 610 016 853), Push stick (2 610 015 022), 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24 (2 608 838 412)
Specificaties
Diameter zaagbladboring
30 mm
Gereedschapafmetingen (breedte x lengte x hoogte)
705 x 640 x 325 mm
Gewicht
27.0 kg
Max. snijcapaciteit links
255 mm
Max. snijcapaciteit rechts
635 mm
Neigingsinstelling
47 ° / 2 °
Neigingsinstelling links
47 °
Neigingsinstelling rechts
2 °
Nominaal ingangsvermogen
1800 W
Onbelast toerental
3650 U/min
Tafelafmetingen
642 x 634 mm
Tafelafmetingen, breedte
634 mm
Tafelafmetingen, lengte
642 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
635 x 810 x 400 mm
Werkzeugabmessungen (Länge)
640 mm
Zaagbladdiameter
254 mm
