Technische Dokumentationbyhx_p_4-31.pdf
343.79 kB
Artikel in 4 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

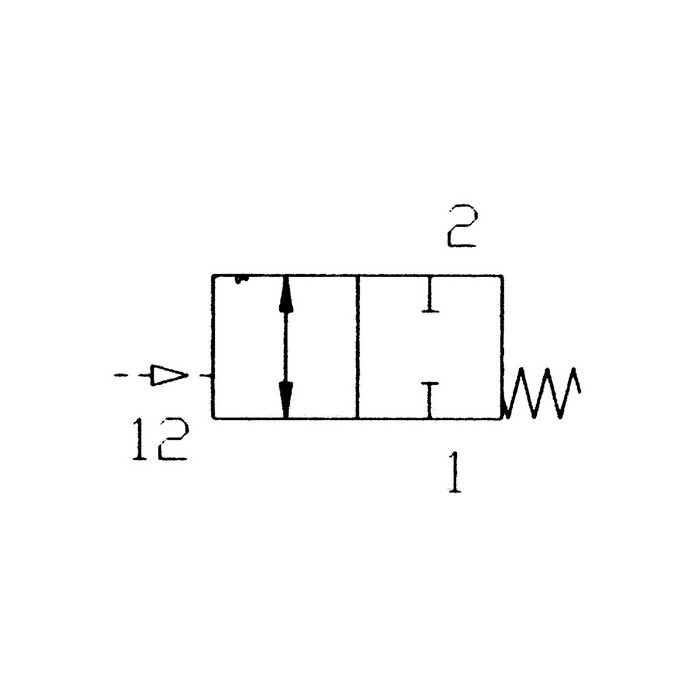

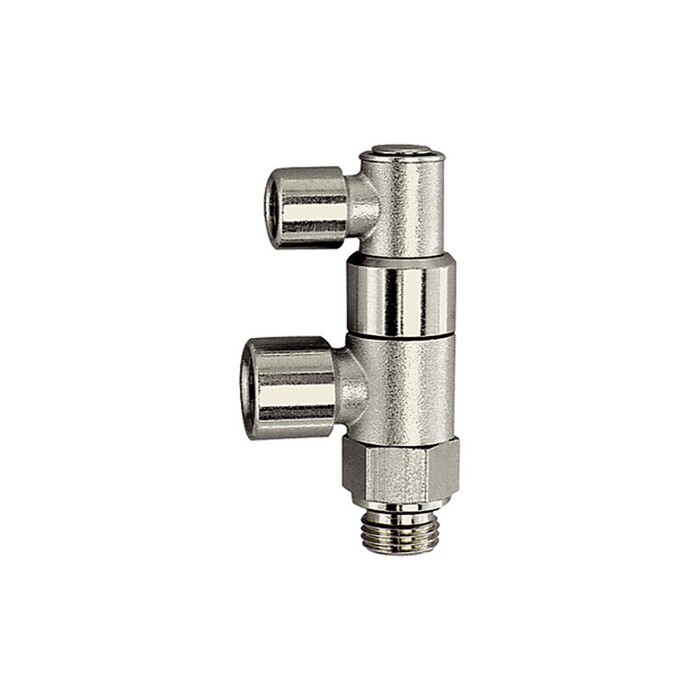

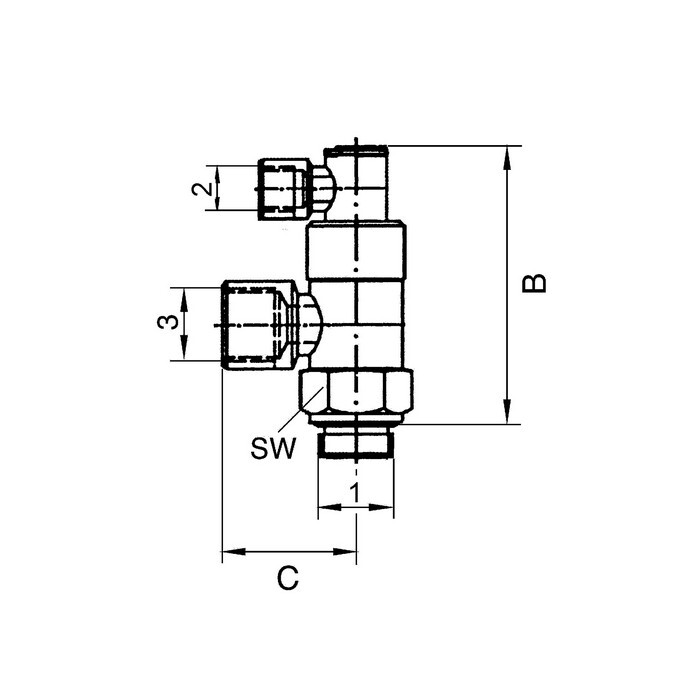

Stopper valve pneumatically actuated, G 1/2, G 1/2 i., G 1/8 i., Working pressure max. 10bar, Medium / ambient temp. -10°C to 70°CFor high-speed positioning and stop functions as well as emergency switching (e. g. emergency stop). If a control signal is present at port 3, air can flow to and from the cylinder. If no control signal is present, the air flow to and from the cylinder is shut off, causing the cylinder to stop in the required position. Stop valves are screwed directly onto the cylinder instead of the normal pipe connections. Note: Pilot pressure is depending on operating pressure.
