Technische Dokumentationbyhx_6-9.pdf
245.64 kB
Artikel in 7 varianten beschikbaar:
Variant selecterenx
Onderhoudseenheid Standaard 3-delige serie IG 1.1/2", DN35, 5500l/min, Mano. D63mm BG4, polycarb, beschermkooi, handmatige afvoer.
Onderhoudseenheid Standaard 3-delige serie IG 1", DN25, 4000l/min, Mano. D63 mm BG3, polycarb, beschermkooi, handmatige afvoer.
Onderhoudseenheid Standaard 3-delige serie IG 1/2", DN15, 3200l/min, Mano. D63mm BG3, polycarb, beschermkooi, handmatige afvoer.
Onderhoudseenheid Standaard 3-delige serie Vrouwelijk 1.1/4", DN25, 5500l/min, Mano. D63mm BG4, polycarb, beschermkooi, handmatige afvoer.
Onderhoudseenheid Standaard 3-delige serie IG 1/4", DN6, 770l/min, Mano. D40mm BG1, polycarb, beschermkooi, handmatige afvoer.
Onderhoudseenheid Standaard 3-delige serie IG 3/4", DN20, 4000l/min, Mano. D63mm BG3, polycarb, beschermkooi, handmatige afvoer.
Onderhoudseenheid Standaard 3-delige serie IG 3/8", DN6, 770l/min, Mano. D50mm BG1, polycarb, beschermkooi, handmatige afvoer.
Prijs en voorraad zichtbaar na login
Beschrijving

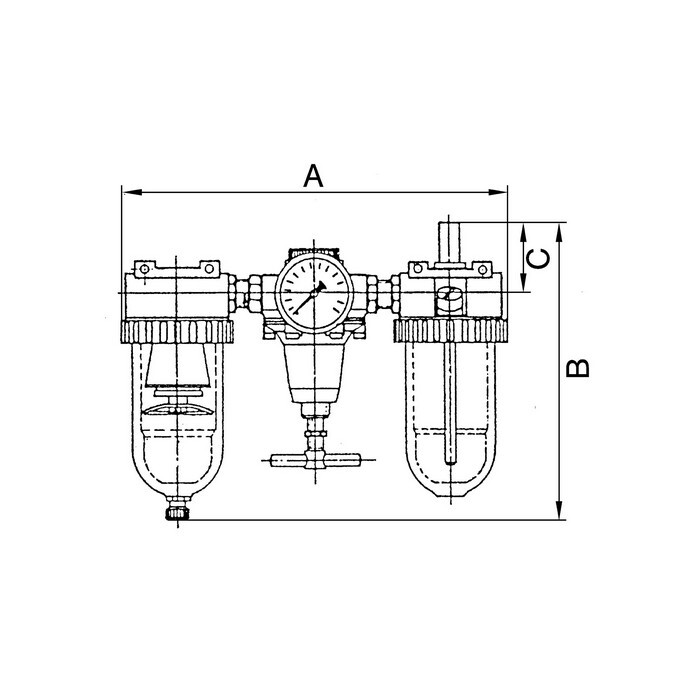

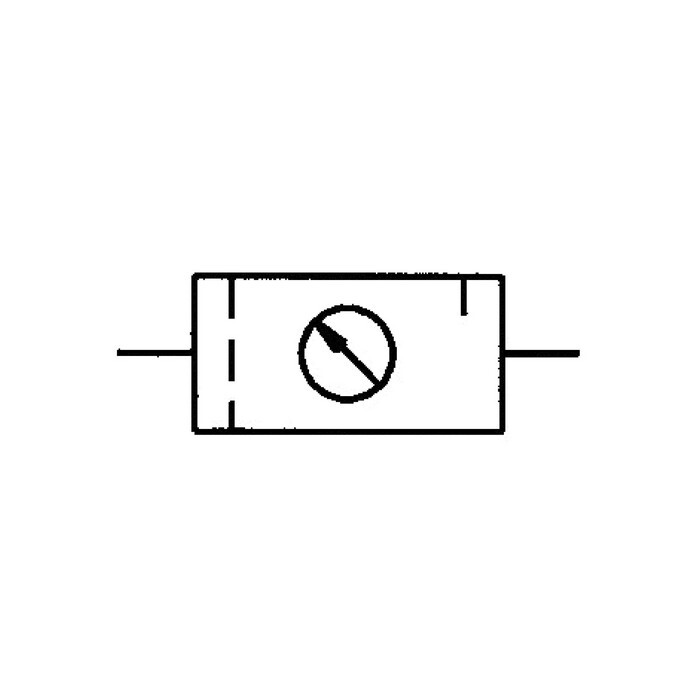

Service unit 3-part »Standard«, PC container, protective cage, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0. 5-10 barThree-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
