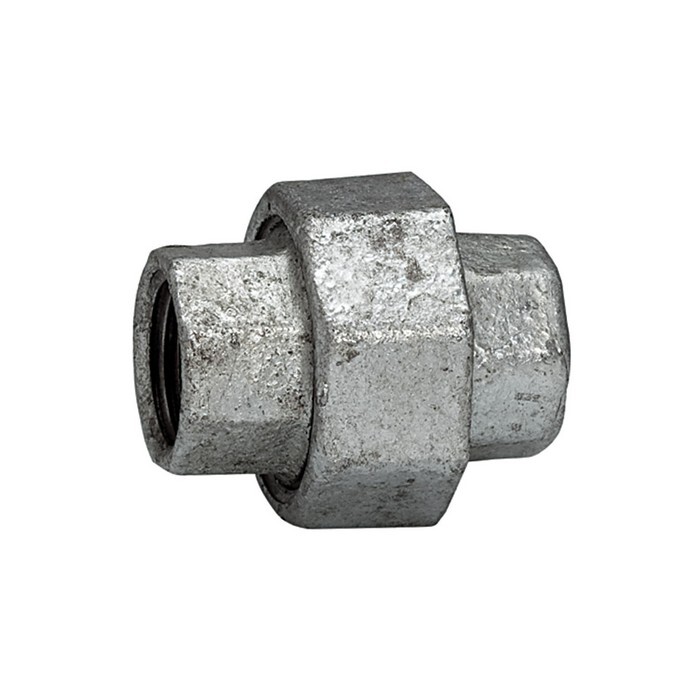

Schroefverbinding nr. 330 gegalvaniseerd
I/I Rp 1/2" vlakke dichting ISO/EN U1Art.-Nr.: 1108686EAN: 4047322384001
VPE (BTL): 10 STKVPE (KTR): 80 STKVPE (VE): 80 STKAantal:
1 STKPakketgeschikt
Beschrijving
Fitting 330, flat sealing, IT/IT, Rp/Rp 1/2, NBR seal, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galva. Maximum temperature and maximum operating pressure should not occur at the same time! Acc. to DIN EN 10242 (formerly DIN 2950) The classic - and the most popular - screw fitting series for pipe construction. These fittings are characterized by their high mechanical strength and surface quality to DIN 2444. They are completely coated with a layer of pure zinc and are therefore suitable for drinking water; they are also protected against rust. These malleable iron fittings are used in machine construction, exterior lines, cold water lines and heating lines.
Specificaties
Materiaal
Zwart smeedbaar gietijzer B350-10 Ontwerpsymbool A
Oppervlakte
Thermisch verzinkt
Schroefdraad
Rp/Rp 1/2
Standaard draad
volgens ISO 7-1
Temperatuurbereik max.
200 °C
Temperatuurbereik min.
-20 °C
