Verticale klem met drukschroef
GN 810-130-CC 10 - Gevalhard staal C 10
Art.-Nr.: 1353334Leveranciersnummer: 810-130-CEAN: 4045525126114
Aantal:
1 STKPakketgeschikt
Artikel in 27 varianten beschikbaar:
Beschrijving
Toggle clamps GN 810 work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Toggle clamps in the U-bar version with two flanged washers (type A) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for Type C. Toggle clamps in type E can be adapted to special requirements by welding with the supplied clasp.

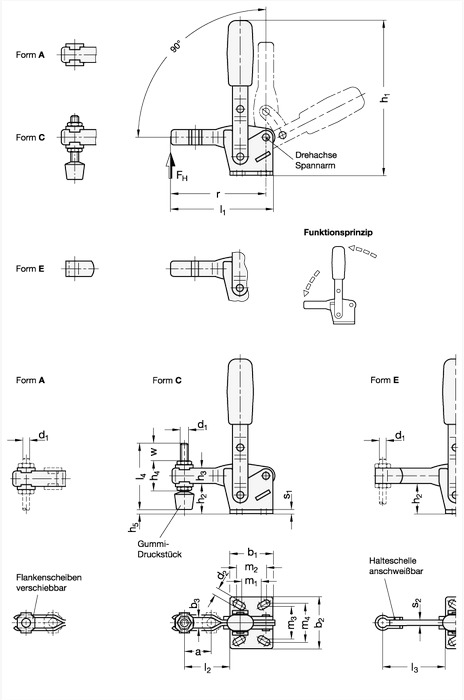

Specificaties
A
28
Gewicht
0.230 kg
L2
42
Maat
130
Materiaal
C 10 - Gevalhard staal C 10
R
79.5
RoHS
Ja
Vorm
C - open klemarm, met 2 flankschijven en drukschroef GN 708.1
Vorm E
86
b1
35
b2
42
b3
6.2
d1
M 6
d2
5.5
h1
142
h2
28
h3
16
h4
25.5
h5
11.3
l4
55
m1
12.5
m2
19
m3
27
m4
29
s1
2.5
w Verstelweg
17.5
