Beschrijving

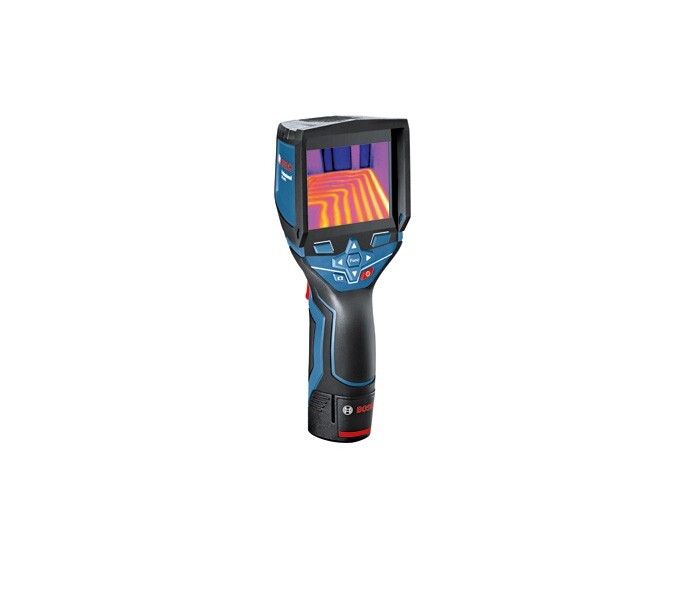

Thermo Camera GTC 400 C, The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies. It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts. The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes. 1 x battery GBA 12V 2.0Ah (1 600 Z00 02X), L-BOXX 136 (1 600 A01 2G0), L-BOXX inlay for tool, L-BOXX inlay accessories, Quick charger GAL 12V-40 Professional (1 600 A01 9R3), Micro USB cable (2 609 120 670), Hand strap
Specificaties
Aantal meetpunten
19200
Accuspanning
12 V
Anschluss Messfühler Typ K
nein
Automatische hotspot- en coldspotmarkering
ja
Autoschaal / Handmatige schaal
ja
Bedrijfstemperatuur
-10 - 45 °C
Beeld overlay
ja
Beeld-in-beeld-functie
ja
Beeldgeheugen (aantal afbeeldingen)
500
Bewerkingsfunctie
ja
Bluetooth
nein
Datenübertragung
WLAN
Formaat IR-sensor, breedte
160 px
Formaat IR-sensor, hoogte
120 px
Geheugen type
Intern geheugen
Gewicht
0.5 kg
Gezichtsveld (FOV)
53x43 °
Gezichtsveld (FOV), tot
43 °
Gezichtsveld (FOV), van
53 °
Geïntegreerde digitale camera
ja
IR-sensorformaat
160x120 px
Instelbare emissiviteit
ja
Meetbereik
-10 °C tot +400 °C
Meetnauwkeurigheid IR
± 3,0 °C* (* plus toepassingsafhankelijke afwijking)
Meettoepassing
Thermisch beeld
Min/Max-alarm
ja
Minimale scherpstelafstand
0.3 m
Opslagtemperatuur
-20 - 70 °C
Resolutie
0.1 °C
Schermgrootte
3.5"
Schimmelwarnmodus
nein
Selektive Messpunkte
nein
Stof- en spuitwaterbescherming
IP 53
Stroomvoorziening en bedrijfstijd
4 x 1,5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10,8V
Thermische gevoeligheid (NETD)
<50 mK
Zusätzliche Messfeldmarkierung
nein
